Removing a wiring harness may seem daunting, but with the right approach and tools, it can be a straightforward task. Whether you're working on agricultural machinery, automobiles, or industrial equipment, knowing the proper technique to disconnect a wiring harness is crucial. In this post, we’ll explore the steps involved in safely and efficiently removing a wire harness and discuss key considerations for various industries, including agricultural, automotive, and medical fields.
A wire harness is a collection of wires bundled together to transmit electrical signals or power within an electrical system. These harnesses are commonly used in automotive, industrial, agricultural, and medical machinery, making it essential to understand how to properly disconnect them when maintenance or repairs are necessary.
Wire harnesses can come in various forms, including:
● Automobile Wire Harness: Found in vehicles, these harnesses connect components like the engine, lights, and dashboard.
● Wire Harness for Agricultural Machinery: These are specifically designed to withstand outdoor conditions and facilitate operations in farming machinery.
● Medical Wire Harness: Used in medical devices, ensuring proper transmission of power or signals for equipment like monitors or diagnostic machines.
● Industry Wire Harness: Found in manufacturing settings, these harnesses are built to meet specific industrial standards.
● Electrical Wiring Harness: A general term for any harness designed for electrical applications.
Each wire harness is designed to meet specific standards, and removing it requires knowledge of the system in which it operates.
Removing a wire harness is not just about pulling it out; it's about following the right process to avoid damaging the components or yourself. Here's a simple guide:
Before attempting to remove any wire harness, always ensure that the power source is turned off. This is especially important in systems connected to heavy machinery, vehicles, or medical devices. Always wear gloves to avoid electric shock or injury from sharp edges of wires.
Locate the wire harness you wish to remove. Depending on the application, it might be housed in a protective covering or connected to other components. For example, in agricultural machinery, the harness may be bundled with a protective cover to shield it from dirt and weather conditions.

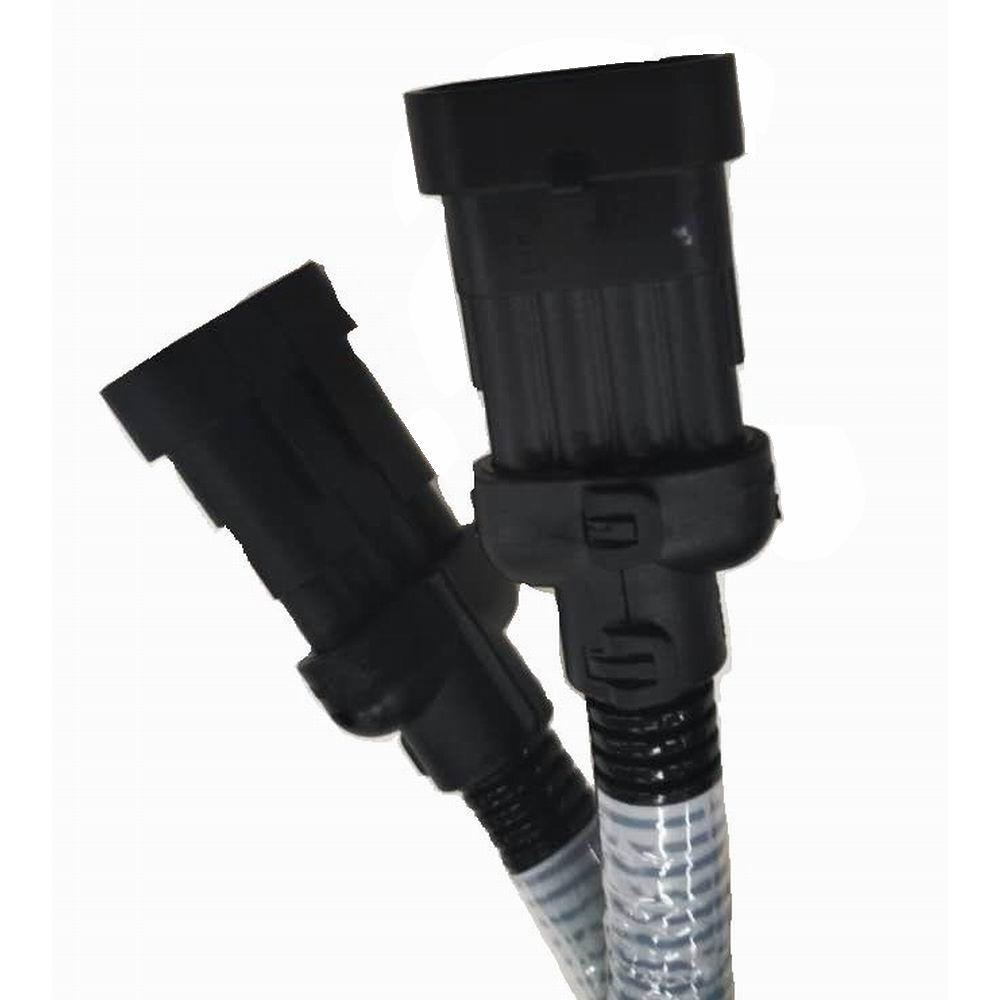

Wire harnesses are often connected via push-in or clip-style connectors. For a smooth removal, first, check if there are any tabs or locks that hold the connectors in place. Press these tabs gently or release the locking mechanism to unlock the connectors. It is important not to force the connectors, as this can break the locking tabs or even damage the wiring.
● Automobile Wire Harness: In vehicles, the connectors are often color-coded or labeled. Pay attention to these details when disconnecting.
● Wire Harness for Agricultural Machinery: These connectors may require some extra force due to their exposure to the elements.
Wire harnesses are typically mounted along specific pathways or fixed to the machinery with clips or screws. Carefully detach any fasteners holding the harness in place. In some cases, you may need to cut zip ties or unclamp any mounting clips that secure the harness along its path.
Once all connectors are released and fasteners removed, gently pull the harness free. Take care to avoid tugging on individual wires as this can damage the integrity of the harness. If the harness is stuck, gently wiggle it or use a flathead screwdriver to loosen any sticky spots.
After removal, inspect the harness for any damage, wear, or corrosion. In industries like medical or electrical wiring, even a small crack in the insulation could lead to system failure. If necessary, replace the harness with a new one before reassembling.
In agricultural machinery, wire harnesses must endure harsh weather, dust, and other outdoor conditions. Removing the harness from these machines often requires extra care to avoid breaking the protective coatings or exposing the wires to the elements. For these types of harnesses, always use weatherproof connectors to maintain the system's integrity.
Medical devices require wire harnesses to be incredibly reliable. The removal process for medical wire harnesses should be handled with extra caution. Ensure that no wires are damaged during removal, as this could lead to system malfunction or inaccurate diagnostics.
Industrial applications often require wire harnesses that can withstand vibrations, heat, and electrical interference. When removing a harness from such machinery, ensure that the integrity of the system remains intact. This is particularly important for machinery used in manufacturing environments, where downtime due to wiring issues can be costly.
Electrical wiring harnesses are commonly used in homes and buildings, as well as machinery and automobiles. When removing electrical wiring harnesses, always ensure that power has been turned off to avoid electrical shock.
Vehicles often have complex wiring systems that require specific techniques for harness removal. Always consult the vehicle’s service manual for the proper procedure. In some cases, disconnecting the vehicle's battery before starting the process is recommended to prevent short circuits.
Removing a wire harness is a task that requires patience, attention to detail, and the right technique. Whether you’re working with an automobile wire harness, wire harness for agricultural machinery, medical wire harness, or electrical wiring harness, always take care to follow the appropriate steps for safe removal. At Changshu Bshine Electronic Technology Co., Ltd., we specialize in providing high-quality wire harnesses designed for agricultural, industrial, medical, and automotive applications. If you need a durable and reliable solution, feel free to explore our range of products to find what best fits your needs.
A: Inspect the wiring for cracks, frayed edges, or exposed metal. If the insulation is compromised, it may be time to replace the harness.
A: Reusing a wire harness is possible, but only if it is in good condition. Ensure that all connectors and wires are intact before reusing the harness.
A: Regular inspections and proper handling are key. Using protective covers and ensuring that the harness is mounted securely will help prevent damage.
A: Basic tools like pliers, screwdrivers, and sometimes a flathead screwdriver are typically sufficient for harness removal.
